UFC IR C length closure with basket and 30 SE IR MKII trays with ribbon splice bridges
Art.-Nr. 857-02331 | UFCIR-CXBCQX |  Details

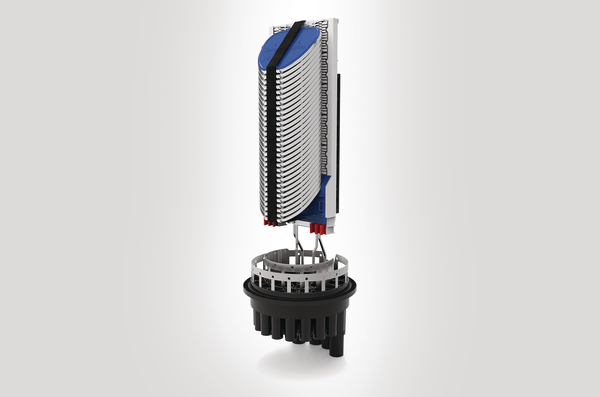

UFC IR C-Length Closure with Basket.

    • Maximum 360 fibre splice capacity
    • 28 round ports and 2 oval ports
    • Positive fibre management to ensure consistent 15mm minimum fibre bend radius throughout
    • Fibre storage basket for loop through applications
    • Bi-directional fibre routing
    • Supplied with 30 SE IR MKII trays with Ribbon splice bridges
    • Maximum of 4 (8 or 12) ribbon cable splices per tray
    • Splitter accommodation
    • Cablelok compatible for all port sizes
    • Quick release cover
    • Optional pressure release valve
    Mehr anzeigen
    Auf die Merkliste

    Fragen Sie Ihr individuelles Angebot an

     Angebot anfordern
    Downloads
    Anschluss Typ L, LM, T, S, B
    Anzahl der Kabeleinführungen 1, 1, 2, 10, 16
    Farbe Schwarz (BK)
    Inhalt per Box
    Kassettentyp Integrated Routing SE MKII
    Material Polypropylen (PP)
    Produktbezeichnung UFCIR-CXBCQX
    Spleißkapazität 360
    Typ UFCIR-CXBCQX

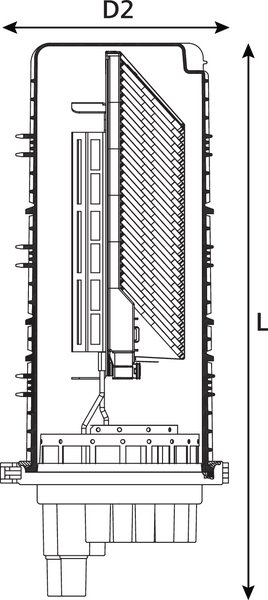

    D1 275mm
    D2 310mm
    Länge 749mm
    EAN / GTIN 4031026684239
    Ursprungsland GB
    Verpackung 1 - Beschaffenheit Box
    Verpackung 1 - Breite, gefüllt (m) 0.331m
    Verpackung 1 - Gewicht (kg) 8.2kg
    Verpackung 1 - Höhe (m) 0.318m
    Verpackung 1 - Länge (m) 0.858m
    Verpackung 1 - Menge 1
    Verpackung 1 - Volumen (m³) 0.09031m³
    ETIM 7.0 EC002067
    ETIM 8.0 Key EC002067
    ETIM 9.0 Key EC002067
