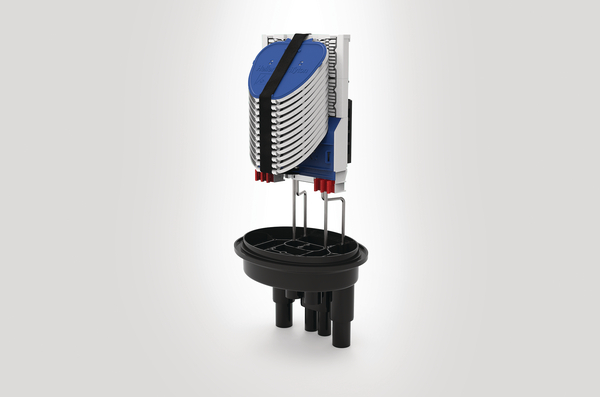

FDN 59 port AB length IR closure with basket and 12 SE-IR MKII trays fitted with 2 x 3A splice bridges
Art.-Nr. 857-02041
| FDNIR-ABBCMX
|
Details
- Maximum 144 fibre splice capacity
- 58 round ports and 1 oval port
- Moulded supports allow the cover to be removed whilst closure is left in-situ
- Fixing points for external cable management attachments
- Positive fibre management to ensure consistent 15mm bend radius throughout
- Fibre storage basket for loop through applications
- Bi-directional fibre routing
- Supplied with 12 SE-IR MKII Trays fitted with 2 x 3A (Green) splice protector inserts
- Maximum 12 splices per tray
- Splitter accommodation
- Cablelok compatible for all port sizes
- Quick release cover
- Optional pressure release valve
Fragen Sie Ihr individuelles Angebot an
Angebot anfordern
Weitere Produkte in dieser Produktgruppe:
| Anschluss Typ | L, T, S, B, R |
| Anzahl der Kabeleinführungen | 1, 2, 4, 2, 52 |
| Ausführung | FTTx-Gehäuse für den Außenbereich |
| Farbe | Schwarz (BK) |
| Inhalt per | Box |
| Kassettenmenge | 12 |
| Kassettentyp | Integrated Routing SE MKII |
| Material | Polypropylen (PP) |
| Methode der Abdichtung | Cablelok, Warmschrumpf |
| Produktbezeichnung | FDNIR-ABBCMX |
| Spleißkapazität | 144 |
| Typ | FDNIR-ABBCMX |
Download
| EAN / GTIN | 5022660174544 |
| Ursprungsland | GB |
| Verpackung 1 - Beschaffenheit | Box |
| Verpackung 1 - Breite, gefüllt (m) | 0.32m |
| Verpackung 1 - Gewicht (kg) | 6.5kg |
| Verpackung 1 - Höhe (m) | 0.72m |
| Verpackung 1 - Länge (m) | 0.32m |
| Verpackung 1 - Menge | 1 |
| Verpackung 1 - Volumen (m³) | 0.07373m³ |
| Zollwarentarif Nr. | 85176200 |
